Why Does My USB-C Charger Make a Buzzing or Whining Noise? Causes, Testing and Factory Solutions

Author : Kvren

Update time : 2026-09-10 16:52:14

Why Does My USB-C Charger Make a Buzzing or Whining Noise? Causes, Testing and Factory Solutions

A USB-C charger can be completely functional and still make a faint buzzing, humming, clicking, or whining sound.
Sometimes you only hear it when the charger is plugged into the wall with no device connected. In other cases, the sound appears when a phone or laptop is charging. It may also change when the charging power changes.
For consumers, this can be difficult to judge.
Is it normal? Is the charger damaged? Is a GaN charger supposed to make noise? Could the sound indicate a safety problem?

From a charger manufacturer's perspective, the answer depends on where the sound comes from, when it occurs, how loud it is, and whether it is accompanied by abnormal electrical or thermal behavior.
A small amount of audible noise can come from normal switching-power-supply operation. However, a loud, sudden, intermittent, or progressively worsening sound deserves investigation.
For charger factories and engineers, the challenge is not simply to make a charger that works. The design also needs to control electrical noise, mechanical vibration, thermal behavior, EMI and component tolerances.

This article explains why USB-C chargers can make buzzing or whining sounds and how professional charger manufacturers identify and reduce the problem.

Is It Normal for a USB-C Charger to Make Noise?
A very faint high-frequency sound can occur in a switching charger and does not automatically mean the charger is defective.
Modern USB PD Gan chargers use switching power supplies. Components inside the charger operate at high frequencies, and some of these electrical forces can create tiny mechanical movements.
In certain operating conditions, those movements become audible.
The sound may be described as Buzzing, Whining, Humming, Chirping,Clicking, High-pitched squealing, and Faint vibrating noise.

The important distinction is between normal operating noise and abnormal mechanical or electrical behavior.
If a charger suddenly becomes much louder, produces a burning smell, becomes unusually hot, repeatedly stops charging, or shows other abnormal behavior, it should not simply be dismissed as coil whine.

What Causes a Charger to Buzz or Whine?
The most common cause is related to magnetics and switching behavior.
A typical switching charger contains components such as a transformer, inductor, choke, capacitor, MOSFET (field-effect transistor), and switching controller.

The transformer and inductors contain magnetic materials and windings.
When the current through these components changes rapidly, electromagnetic forces can create extremely small physical movements.
Normally these movements are too small or too high in frequency to notice. But under certain conditions, the vibration can enter the audible range or excite surrounding materials.
That is what people commonly call coil whine.

What Is Coil Whine in a Charger?
Coil whine is an audible sound generated by vibrating magnetic components.
The word "coil" is slightly misleading because the source may involve more than the winding itself.
Noise sources may originate from transformer windings, inductors, ferrite cores, magnetic shielding structures, mechanical bonding materials, or PCB structures surrounding magnetic components.

The sound is often related to the switching frequency or harmonics generated by the power converter. A charger may therefore produce different sounds under different loads.
Example:
No load → faint high-frequency sound
Light load → intermittent chirping
Medium load → quieter
Heavy load → different frequency or louder sound
This behavior can provide engineers with useful information about how the converter is operating.

Why Does My Charger Buzz More When Nothing Is Connected?
This is a very common issue.
It may seem counterintuitive for a charger to generate more noise under light loads—or even no load at all. This phenomenon is typically linked to "light-load" and "burst-mode" operation.
When no device is connected, the charger does not need to deliver significant power. To minimize standby power consumption, the controller may reduce the switching frequency; instead of continuous switching, it operates intermittently in "packets" or "bursts."
This creates a lower-frequency envelope around the switching waveform.

If a frequency within this envelope falls into the audible range for humans, the magnetic components can produce noticeable noise.
This explains why a charger might be silent under full load yet audible when unloaded. However, this does not necessarily mean the charger is under greater electrical stress when there is no load.

Why Do GaN Chargers Sometimes Make a High-Pitched Noise?
GaN chargers are often designed around high-frequency switching architectures.
Gallium nitride devices can support fast switching with low switching losses, which helps engineers build smaller and higher-power-density chargers. But higher-frequency switching also creates new design challenges.
Engineers need to carefully manage aspects such as gate drive characteristics, switching transition processes, PCB layout, electromagnetic interference (EMI), magnetic components, control loop characteristics, resonance, and mechanical vibration.
A GaN charger that makes noise is therefore not necessarily a "bad GaN charger."

The more useful question is: Is the sound caused by normal operating behavior, or does it indicate a design or component problem?
Actual engineering validation is more meaningful than judging a charger's quality solely based on technical specifications.
For more background, see our related article: GaN Chargers vs. Traditional Chargers: What's the Difference and Why Does It Matter?

Why Does the Noise Change When I Plug In a Device?
Because the charger changes its operating condition. When a device is connected, the charger and device establish the required charging conditions.
The converter may change: Output voltage, Output current, Switching frequency, Switching mode, Burst behavior and Control-loop activity.

For example, a charger might operate at: 5V / low current and then transition to: 9V / higher current; when the device requests more power.
The internal switching behavior changes with the operating point.
As a result, the audible sound can also change.
This is why engineers should test charger noise under multiple load conditions, not just one.

Why Does a Charger Make a Clicking or Chirping Sound?
A repetitive clicking or chirping sound can have several causes.
One possibility is burst-mode operation. Another can be a control loop repeatedly entering and leaving a particular operating state.
Other issues may include repeated triggering of protection mechanisms (protection cycling), unstable load conditions, transformer or inductor vibration, audible harmonic noise, and so on.

This is where troubleshooting becomes important. A factory engineer should correlate the sound with electrical measurements.
For example:
Does the output voltage remain stable?
Does the current remain stable?
Is the charger repeatedly entering protection?
Does the sound disappear under a defined load?
Does the waveform show abnormal oscillation?
Listening alone cannot answer these questions.

Is Charger Buzzing Dangerous?
A faint buzz does not automatically mean a charger is dangerous.
However, audible noise should be considered together with other symptoms.
Usually less concerning
A faint, stable high-frequency sound that:
• Has existed since the beginning
• Does not get progressively louder
• Occurs only under specific load conditions
• Is not accompanied by overheating
• Does not interrupt charging
• Does not produce a burning smell
may be related to normal switching behavior or magnetic vibration.
Needs investigation
More attention is warranted if the charger:
• Suddenly becomes much louder and Makes crackling sound;
• Becomes excessively hot and Produces a burning smell;
• Shows unstable output, Repeatedly disconnects;
• Makes unusual sounds that increase over time or Produces visible damage.
For consumer use, an abnormal charger should not be opened or repaired without appropriate expertise. For manufacturers, these symptoms should trigger a structured engineering investigation.

Buzzing vs. Electrical Noise: They Are Not the Same Thing
This distinction is important.
A charger can have electrical switching noise that you cannot hear. It can also have audible mechanical noise that you can hear.
The two are related but not identical.
Electrical noise
Measured with equipment such as: Oscilloscope, Spectrum analyzer, EMI receiver.
It can involve: Switching spikes, Ripple, Ringing, High-frequency noise, EMI.

Audible noise
Measured using: Acoustic measurement equipment, Controlled listening tests, Sound-level measurement.
Noise sources may originate from: Transformer vibration, Inductor vibration, Mechanical resonance, Structural vibration.
A charger can therefore have excellent electrical ripple performance while still producing an audible mechanical sound.
This is why electrical testing alone does not completely cover charger quality.

How Is Charger Buzzing Related to Ripple?
There can be a relationship, but ripple and audible noise are not the same thing.
Ripple is an electrical voltage variation on the DC output.
Audible noise is a mechanical sound.
However, both can be influenced by the same switching behavior.

For example: Switching behavior → electrical waveform → magnetic forces → mechanical vibration → audible noise
This is one reason engineers may examine both the oscilloscope waveform and the acoustic behavior when investigating a noisy charger.
Our previous article explains this electrical side in more detail: Charger Ripple and No-Load Ripple: What They Mean and How Engineers Test Them.

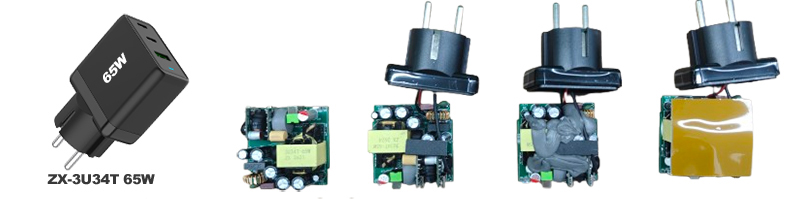

Do the internal components of a charger make noise.

What Happens Inside the Transformer?
The transformer is one of the first components engineers inspect when investigating charger noise.
A switching transformer experiences rapidly changing magnetic fields.
These can create physical forces inside the magnetic structure.

If the vibration reaches an audible frequency, the transformer can effectively behave like a tiny speaker.
The sound may be very quiet. But if the mechanical structure amplifies the vibration, it can become clearly audible.

Can Poor Transformer Construction Cause Buzzing?
Yes! Transformer construction has a significant effect on acoustic behavior.
A transformer can meet its electrical specifications and still have undesirable acoustic behavior if the mechanical construction is inconsistent.
This is one reason transformer sourcing and production quality matter in charger manufacturing.
For a factory, the challenge is not simply finding a transformer that delivers the required electrical characteristics.
It also needs to be repeatable in mass production.

Can Capacitors Cause Charger Noise?
Capacitors are not usually the first component engineers blame for audible charger noise, but they can participate in abnormal operating behavior.
Common effects of capacitors include output filtering, control loop response, switching characteristics, ripple, transient response, and so on.

If an unsuitable capacitor is used, the power converter may behave differently from the original design.
For example, changes in capacitance or equivalent series resistance (ESR) can affect control loop stability.
This, in turn, may indirectly alter switching characteristics and generate audible noise. That is precisely why replacing components based solely on the principle of "equivalence"—without verifying electrical characteristics—can sometimes lead to unexpected issues.

Can PCB Layout Affect Audible Noise?
Yes. PCB layout is normally discussed in relation to efficiency and EMI, but it can also influence switching behavior and unwanted vibration.
Improper layout can increase parasitic inductance, ringing effects, switching spikes, EMI, and ground noise.
These effects can change the waveform applied to magnetic components.

In a compact charger, PCB space is limited. High-power switching components, transformers, controllers and output circuits may be packed into a very small enclosure.
That makes layout optimization particularly important.
This becomes even more challenging in compact GaN chargers, where high switching speeds and high power density are combined in a small physical volume.

Why Charger Size Can Influence Noise
Smaller does not automatically mean noisier. But miniaturization changes the engineering environment.
A smaller charger has:
• Less internal space, Higher component density;
• Shorter electrical paths, Smaller thermal paths;
• Less mechanical separation.
At the same time, modern chargers may operate at higher switching frequencies to achieve greater power density.
The mechanical structure therefore needs to be designed alongside the electrical architecture.
This is one reason charger miniaturization is an engineering challenge rather than simply a matter of using smaller components.
For more information: Why Are Chargers Getting So Much Smaller?

How Does a Charger Factory Test Audible Noise?
This is different from ordinary electrical testing. A factory may first perform electrical testing to determine whether the charger is operating normally.
Then engineers can investigate the acoustic behavior.
A controlled test may include:
1. Place the charger in a defined environment.
2. Apply a known AC input.
3. Test with no load.
4. Test at light load.
5. Test at medium load.
6. Test at full load.
7. Record the sound.
8. Measure output voltage and current.
9. Observe switching waveforms.
10. Identify the component producing the sound.
The purpose is not simply to ask: "Does it make a noise?"
The goal is to establish: When does the noise occur, what operating condition causes it, and is the behavior repeatable?
That is much more useful for engineering.

What Load Conditions Should Be Tested?
A charger should ideally be tested across its intended operating range.
For example, a 65W charger could be evaluated at: 0W, 5W, 10W, 20W, 30W, 45W, 65W.
A 100W charger can be evaluated across a similar range based on its architecture.
The exact test points depend on the product.
Engineers will record the electrical and acoustic characteristics at each test point.
A charger that is silent at 65W but noisy at 0W may have a completely different root cause from a charger that becomes louder as the load approaches maximum power.

How Do Engineers Find the Source of the Sound?
One practical method is to correlate the sound with operating conditions.
For example:
Noise only at no load; Investigate:
• Burst mode, Light-load control, Switching packets, Standby operation.

Noise only at low load; Investigate:
• Control-loop mode changes, Pulse skipping, Frequency modulation, Magnetic vibration.

Noise at high load; Investigate:
• Transformer vibration, Inductor vibration, Switching stress, Thermal conditions, Mechanical fixation.

Noise at all loads; Investigate:
• Magnetic component construction, Mechanical resonance, Core assembly, Enclosure vibration.
This approach gives engineers a much faster path toward the root cause.

How Can a Charger Manufacturer Reduce Coil Whine?
There is no universal fix. The solution depends on the root cause.
Possible engineering improvements include:
Optimize Transformer Construction — Improve winding fixation and mechanical consistency.
Select Appropriate Magnetic Materials — The core material and structure can influence both electrical and acoustic behavior.
Optimize Switching Conditions — Adjust switching frequency, control strategy or operating mode where appropriate.
Improve PCB Layout — Reduce unwanted ringing and parasitic effects.
Improve Mechanical Fixation — Prevent components from vibrating unnecessarily.
Optimize Snubber Circuits — Control switching spikes and ringing.
Tune the Control Loop — Improve stability under light and dynamic loads.
Improve Component Consistency — Use controlled specifications for critical magnetic and electronic components.
The key is to solve the root cause instead of simply adding random mechanical adhesive or changing one component without understanding the circuit.

Why Mass Production Makes Acoustic Control Difficult
This is an important issue for charger manufacturers.
A prototype may be quiet.
A pilot run may also look good.
Then production begins and a small percentage of chargers sound different.
Why?
Because acoustic behavior can be sensitive to manufacturing variation.
Minute variations in factors such as transformer windings, core assembly, adhesives, component tolerances, PCB assembly, mechanical stress, and housing assembly can alter resonance characteristics.
This means a charger factory needs to control not only electrical parameters but also the consistency of critical mechanical components. For OEM and ODM projects, this becomes particularly important when the customer has a strict acoustic requirement.

Key Knowledge Points on Chargers for B2B Buyers

What Should B2B Buyers Ask a Charger Manufacturer About Noise?
If you are purchasing chargers in volume, do not simply ask: "Is your charger silent?"
That question is too broad.
A better specification is: "What is the acoustic noise performance under defined input and load conditions?"
You can also ask:
• Is no-load acoustic testing performed?
• Is light-load testing performed?
• Is full-load testing performed?
• Are transformer and inductor specifications controlled?
• Is the charger tested with different input voltages?
• Are abnormal acoustic units screened during production?
• Is there a defined acceptance criterion?
• Can the factory provide engineering samples for evaluation?

This is particularly useful for products intended for:
• Office environments, Hotel rooms, Bedrooms, Travel chargers, Desktop charging stations, Premium branded.
In these applications, even a small amount of high-pitched noise can affect the customer's perception of product quality.

Does a Quiet Charger Mean It Is Better?
Not necessarily.
A quiet charger is certainly desirable in many applications. But acoustic performance is only one part of product quality.
A charger that is completely silent but has poor thermal performance is not a good design.
Likewise, a charger with excellent electrical performance but unacceptable audible noise may not be suitable for a premium consumer product.
Good engineering is about balancing the complete system.

How Audible Noise Fits Into Charger Quality Control
For professional charger manufacturers, quality control is integrated across multiple stages of the process.
At the Component level, key inspections focus on items such as transformers, inductors, controllers, capacitors, MOSFETs, and USB-C connectors.

At the PCBA (Printed Circuit Board Assembly) level, inspections cover electrical output, protection functions, switching characteristics, and communication capabilities.

At the Finished product level, inspections include output voltage, charging functionality, temperature, safety, and acoustic characteristics (depending on specific requirements), among others.

Aging Level
Operate the charger under controlled conditions to identify abnormal behavior that may appear after extended operation.
This is especially useful because some mechanical noises become more noticeable as components heat up.

Why Charger Aging Tests Matter
A charger that sounds normal for five minutes may not behave exactly the same after running continuously.
Temperature changes can affect:
• Component characteristics, Transformer materials;
• Mechanical expansion,Control behavior, Thermal conditions.
Therefore, aging tests can help identify abnormal units before shipment.
For B2B customers making bulk purchases, the purpose of testing goes beyond simply confirming that the sample functions correctly;
more importantly, it serves to build confidence and ensure consistent performance across mass-produced batches.

What About a Charger That Buzzes Only After Charging for 30 Minutes?
This is an interesting failure condition.
If the sound appears only after the charger warms up, engineers should investigate the relationship between: Temperature → Electrical operating point → Mechanical behavior.

Potential areas for investigation include transformer temperature, inductor temperature, component thermal expansion, thermal drift, control loop characteristics, and enclosure resonance.
The sound may be caused by a component that changes its mechanical characteristics as temperature rises.
Again, the right approach is to reproduce the condition and measure it.

Should a Buzzing Charger Be Replaced?
For consumers, if a charger is unusually loud, suddenly develops a new sound, becomes excessively hot, smells abnormal, or repeatedly interrupts charging, replacing it with a known-good charger is the safer approach.
For manufacturers, however, replacement is only the beginning of the investigation.
The failed unit should ideally be: Identified → Isolated → Analyzed → Corrected → Retested
Otherwise, the same issue can appear again in the next production batch.

Final Thoughts: Charger Noise Is an Engineering Problem, Not Just a Sound Problem
A buzzing or whining USB-C charger can be caused by completely normal switching behavior, especially under no-load or light-load conditions.
However, it could also stem from issues related to transformer structure, inductor vibration, switching frequency, burst-mode operation, PCB layout, control loop characteristics, mechanical resonance, or component variations.

That is why charger manufacturers should not judge acoustic performance by listening to one sample for a few seconds.
The better approach is to test the charger across different operating conditions and correlate the sound with electrical and thermal measurements.

For charger development targeting the B2B market, an excellent charger is more than just a device capable of delivering 65W, 100W, or 140W of power.
While delivering the required power, it must also ensure stable output, effective thermal management, reliable protection, predictable charging behavior, and consistent manufacturing quality.
Furthermore, if the product is intended for use in quiet environments, acoustic performance should also be factored into the product specifications.

FAQ: USB-C Charger Buzzing and Coil Whine
Q1. Why does my USB-C charger make a buzzing sound?
A USB-C charger can make a buzzing sound because magnetic components such as transformers and inductors may vibrate during high-frequency switching. Light-load or burst-mode operation can sometimes make the sound more noticeable.

Q2. Is charger coil whine normal?
A faint and stable high-frequency sound can occur in switching power supplies and does not automatically indicate a defect. However, loud, sudden or abnormal noise should be investigated together with temperature, charging stability and electrical performance.

Q3. Why does my charger make noise when nothing is connected?
Many chargers enter a low-power operating mode when there is no load. Burst or pulse-skipping operation can create audible frequency components, which may cause transformers or inductors to vibrate.

Q4. Why does the buzzing change when I plug in my phone?
Connecting a device changes the charger's load and operating conditions. The switching frequency, control mode, output voltage and current can change, which can also change the frequency or intensity of audible vibration.

Q5. Do GaN chargers make more noise?
Not necessarily. GaN chargers often use high-frequency switching architectures, which can introduce different engineering challenges, but GaN itself does not mean that a charger will be noisy.

Q6. Can a buzzing charger be dangerous?
A faint buzz alone does not necessarily indicate a safety problem. If the charger also becomes excessively hot, smells burnt, crackles, repeatedly disconnects or shows visible damage, it should be treated as abnormal.

Q7. Can a transformer cause charger buzzing?
Yes. Transformer windings, cores and mechanical structures can vibrate due to changing magnetic forces. Transformer construction and mechanical fixation can therefore influence acoustic noise.

Q8. Can poor PCB design cause charger noise?
Yes. PCB layout affects parasitic inductance, switching spikes, ringing and EMI. These electrical effects can influence the operating behavior of magnetic components and contribute to audible noise.

Q9. How does a charger factory test coil whine?
A factory can test the charger under no-load, light-load, medium-load and full-load conditions while monitoring electrical waveforms and acoustic behavior. Engineers then correlate the noise with the charger's operating state to identify the root cause.

Q10. How can manufacturers reduce charger buzzing?
Depending on the root cause, engineers can optimize transformer construction, magnetic materials, switching conditions, PCB layout, snubber circuits, control-loop settings and mechanical fixation.

Q11. Why does my charger become noisy after it gets hot?
Temperature can change component characteristics and mechanical conditions. If noise appears only after warm-up, engineers should compare the electrical and acoustic behavior at different temperatures and loads.

Q12. Should B2B buyers specify acoustic noise for a charger?
For products used in quiet environments, yes. Buyers can specify acoustic requirements and ask the factory to test no-load, light-load and full-load conditions using defined input and environmental conditions.

Reviewer: ZX-power R&D Team — Selike and Miller
Technical Review: Q&A for Charging Product Factories
Final Review Date: [September 9, 2026]

Next : Charger Ripple and No-Load Ripple: What They Mean and How Engineers Test Them
