Charger Efficiency Explained: How Manufacturers Measure and Improve Power Efficiency
When a charger is rated at 65W, 100W or 140W, that number describes the power it can deliver to the connected device.
It does not mean the charger draws exactly the same amount of power from the wall.
Some energy is inevitably lost during power conversion.
That difference is one of the most important electrical characteristics of a modern charger: efficiency.

For a charger manufacturer, efficiency is much more than a percentage printed on a specification sheet. It affects heat generation, product size, component selection, standby power, reliability, thermal design and the overall user experience.
This becomes particularly important as Type-c PD chargers move toward higher power levels and smaller form factors.

A compact 100W GaN charger, for example, has to convert substantial input power while keeping losses and temperature under control inside a relatively small enclosure.
So what exactly does charger efficiency mean?
How do factories measure it?
Why do GaN chargers often achieve high efficiency?
And does a higher-wattage charger automatically consume more electricity?
Let's look at the subject from a charger manufacturer's and power electronics engineer's perspective.

What Is Charger Efficiency?
Charger efficiency is the percentage of input electrical power that is successfully converted into useful output power.
The basic calculation is: Efficiency = Output Power ÷ Input Power × 100%

For example, if a charger receives 75W from the AC source and delivers 65W to the connected device: 65 ÷ 75 × 100% = 86.7%
The remaining power is lost primarily as heat and other conversion losses.
This is why a 65W charger may draw more than 65W of power from the wall outlet when operating at its rated output. This discrepancy does not necessarily indicate a defect or waste; some loss is an inherent and unavoidable part of the process of converting electrical energy.
The engineering challenge is to keep those losses appropriately low.

Where Does Charger Power Loss Come From?
A switching charger contains several stages, and each stage can contribute to overall power loss.
A simplified power path looks like:
AC Input → Rectifier → Power Factor / Control Stage → Switching Stage → Transformer → Secondary Rectification → Output Regulation → USB-C Output.

Power losses generally stem from MOSFETs, transformer core and copper windings, rectification, inductors, capacitor equivalent series resistance (ESR), PCB trace resistance, and the power consumption of controllers, protection circuits, and auxiliary power supply circuits.
In high-power applications, even a small percentage of loss can become quite significant.

For example, at 100W output:
• 95% efficiency means about 5.3W input loss
• 90% efficiency means about 11.1W input loss
• 85% efficiency means about 17.6W input loss
That lost energy has to go somewhere.
In a charger, much of it becomes heat.

Why Does Charger Efficiency Matter?
Efficiency affects much more than electricity consumption.
For charger manufacturers, it influences at least five important areas.
1. Heat: Lower efficiency means more power is converted into heat.
2. Size: Higher efficiency can reduce the amount of thermal management required, helping engineers design smaller products.
3. Reliability: Lower temperatures can reduce stress on components and materials.
4. Energy Consumption: Higher efficiency means less input energy is required to deliver the same output power.
5. Product Design: Efficiency affects component selection, PCB layout, thermal structure and enclosure design.
Efficiency is one of the key parameters engineers evaluate when developing chargers.

Does a 100W Charger Always Consume 100W?
No. A 100W charger rating normally refers to its maximum or specified output capability, not its constant wall power consumption.
Suppose a 100W charger is operating at 90% efficiency and delivering 90W to a laptop.
The approximate input power would be: 90W ÷ 90% = 100W. But if the same charger is only delivering 20W to a smartphone, its input power will be much lower.

Output power, conversion efficiency, operating mode, load conditions, and standby power consumption all affect actual power consumption.
This is an important distinction for both consumers and B2B buyers.
A charger does not continuously consume its maximum rated wattage simply because it is labeled "100W."

Charger Efficiency Changes With Load
One of the most important things about efficiency testing is that efficiency is not constant across the entire load range.
A charger may behave differently at: No load / Very light load / 10% load / 25% load / 50% load / 75% load / Full load.

For example, a charger may achieve its best efficiency around a medium-to-high load while showing lower efficiency at extremely light loads.
This is normal for many switching power supplies.
At low load, fixed internal losses become a larger percentage of the total output power.
Imagine a charger consumes 0.5W internally.
At 100W output, that 0.5W represents only a small portion of the total power.
At 2W output, the same internal consumption becomes much more significant relative to the output.
Therefore, factory efficiency testing should not rely on only one load point.

Why No-Load Efficiency Is Different
At no load, the charger is not delivering useful output power. It may still consume a small amount of electricity to keep internal circuits operating.
This is generally described as standby power or no-load power consumption, depending on the test context.
This is an important parameter for mobile chargers because they spend a significant amount of time connected to the wall without actively delivering high power.
A well-designed charger therefore needs to manage both: High-load efficiency and Low-load / standby power consumption.
These are related but should not be treated as the same measurement.
For more information about what happens electrically when a charger has no load, see our related article: Charger Ripple and No-Load Ripple: What They Mean and How Engineers Test Them.

Why Do GaN Chargers Often Have High Efficiency?
GaN, or gallium nitride, has become an important technology in compact fast chargers. One of its major advantages is its ability to support fast switching with low switching losses under appropriate designs.
This helps engineers create transformers that are smaller, more compact, and offer higher power density, as well as smaller thermal management structures and high-power USB-C chargers.

But there is an important point: GaN does not automatically guarantee high charger efficiency.
The final efficiency depends on the complete power architecture. A poorly designed GaN charger can still have disappointing efficiency.
GaN is an engineering tool, not a magic efficiency button.
For related background: GaN Chargers vs. Traditional Chargers: What's the Difference and Why Does It Matter?

How Does Higher Switching Frequency Affect Efficiency?
Higher switching frequency can help reduce the physical size of magnetic components.
This is one reason phone and laptop chargers can become much smaller. But increasing switching frequency also introduces additional losses.
Engineers need to balance: Power density ↔ Switching losses ↔ EMI ↔ Thermal performance.

At higher frequencies, switching transitions happen more often.
This can exacerbate issues related to switching losses, gate drive losses, EMI challenges, transformer losses, and PCB parasitic effects.
Therefore, simply increasing switching frequency is not a complete solution.
The power stage has to be optimized as a system.
This is especially important for compact GaN chargers where high switching frequency and high power density are often used together.

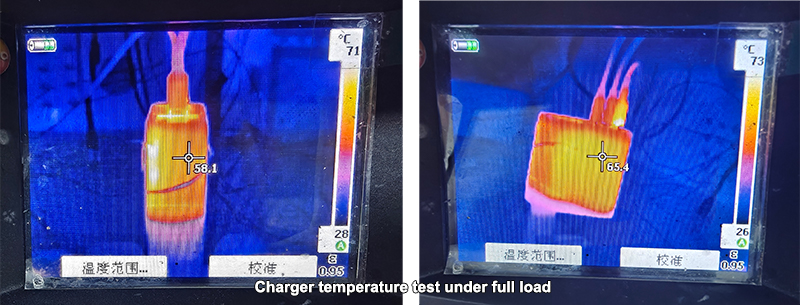

Temperature testing of PD Gan 120W and 100W chargers under full load

What Is the Relationship Between Efficiency and Charger Temperature?
The relationship is direct.
In other words, for a 100W charger: the input power is 100W, and the output power delivered to the device for charging is 95W.
That energy becomes heat and other losses.

Now imagine the same charger operates at: 85% efficiency. To deliver 100W output, it would need approximately: 117.6W input.
The loss becomes roughly: 17.6W.
That is a major difference inside a small enclosure.

This is why efficiency is so important for high-power chargers.
For a compact 100W or 140W product, several additional watts of heat can significantly change the thermal design.
For more information: Why Does My Charger Get Hot? Is It Dangerous? Causes, Solutions and Manufacturer Insights.

Why Efficiency Matters More as Chargers Get Smaller
Charger miniaturization creates a thermal challenge.
The physical product becomes smaller, but the amount of power being processed may stay the same or increase.
Consider the difference between: 20W charger and 100W charger.
The 100W charger processes five times the output power.

If the enclosure is only slightly larger, engineers have much less room to dissipate the additional heat.
This is one reason high efficiency becomes increasingly important as charger power density rises. The goal is not simply: Make the charger smaller.
The real engineering objective is: Deliver more power in less space without allowing losses and temperature to become unacceptable.
For a deeper look at charger miniaturization: Why Are Chargers Getting So Much Smaller?

How Do Charger Manufacturers Measure Efficiency?
A factory normally needs controlled input and output measurements.
The basic concept is straightforward: Measure Input Power → Measure Output Power → Calculate Efficiency
But accurate testing requires appropriate equipment and defined conditions.
Examples include AC power analyzers, electronic loads, oscilloscopes, USB-C PD analyzers, temperature measurement equipment, power meters, and data acquisition equipment.
For USB-C PD chargers, engineers first set the required output conditions.

For example: 5V, 9V, 12V, 15V, 20V; depending on the product's supported output profiles.
Then the electronic load applies controlled current.
The factory records: Input voltage, Input current, Input power, Output voltage, Output current, Output power, Efficiency, and Temperature.
The test can then be repeated across different load conditions.

Why Input Voltage Matters During Efficiency Testing
Efficiency can change depending on the AC input condition.
A charger designed for international markets may need to operate across a wide input range.

For example: 100–240VAC
The power stage may behave differently at: Low AC input, Nominal AC input,High AC input.
This means a factory should not assume that a single efficiency measurement represents every operating condition.
For international B2B products, engineers may evaluate efficiency at multiple input voltages and output loads.

How Does Output Voltage Affect Efficiency?
The same charger can have different efficiency results at different USB-C PD output voltages.
For example: 5V, 9V, 15V, 20V. Each operating point changes current, switching behavior and conversion conditions.
A 65W charger may therefore have one efficiency result at 20V / 3.25A and another at 9V / approximately 3A

This difference does not imply a flaw in either topology; power stage circuits may exhibit varying losses depending on the specific combination of voltage and current.
Professional test reports should clearly specify the actual operating points.

What Is the Difference Between Efficiency and Power Factor?
These two terms are often confused. They are not the same concept.
Efficiency
Efficiency describes how much of the input power becomes useful output power.
Efficiency = Output Power ÷ Input Power

Power Factor
Power factor describes the relationship between real power and apparent power at the AC input. It is influenced by the input current waveform and phase relationship.
A charger can therefore have: High efficiency, Good power factor; but these are separate characteristics.
For higher-power charger designs, engineers may need to consider power-factor behavior and applicable requirements depending on the product and target market.

Why Is Standby Power Important for Chargers?
A charger may spend much of its life plugged into the wall without actively charging a device.
During this time, it still consumes some energy.
Energy consumption levels depend on factors such as controller architecture, auxiliary circuit design, energy-saving modes, feedback circuitry, PD controllers, and internal losses.
Mobile charger should therefore be designed not only for efficient full-load operation but also for sensible low-power behavior.
Standby performance can also influence compliance requirements in certain markets.

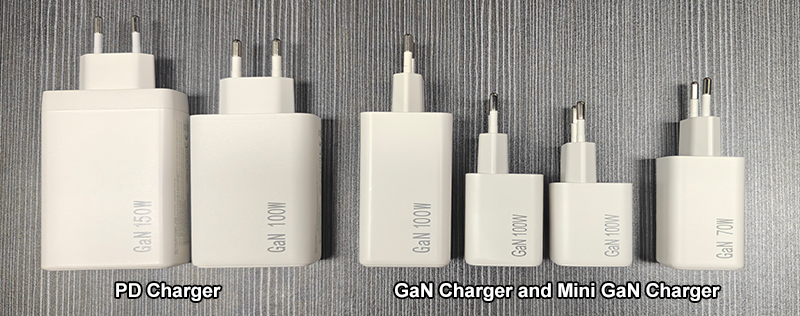

PD Gan 70W 100W 150W High Power Chargers

Does a Higher-Wattage Charger Waste More Energy?
Not necessarily. A 140W charger can be more efficient than a poorly designed 65W charger at a particular operating condition.
The important variables are:
• Actual output power
• Efficiency
• Load
• Standby consumption
• Operating time
A higher-rated charger only has greater output capability.
If a 140W charger is delivering 20W, it is not necessarily consuming 140W.
This is an important concept for product buyers because wattage rating should not be confused with constant energy consumption.

Why Efficiency Is Important for OEM Charger Development
For an OEM customer, efficiency affects more than the technical specification. It can influence the entire product design.
For example, a buyer may want: 100W output + compact enclosure + low surface temperature
These requirements are connected.
If the charger has excessive conversion loss, more heat is generated.
The factory may then need:
• Larger thermal components;
• More internal spacing;
• Different PCB construction;
• Larger enclosure;
• Different materials;
• Additional cooling measures.
The aforementioned factors will influence the product's dimensions, BOM (Bill of Materials) cost, appearance, weight, and retail market positioning.
During OEM development, efficiency issues should be considered as early as possible, rather than waiting until the prototype is completed to conduct an evaluation.

How Manufacturers Improve Charger Efficiency
There is no single component that solves efficiency problems.
Engineers usually optimize the complete power system.
1. Select an Appropriate Power Topology
The topology determines how power flows within the converter. A well-designed architecture can reduce unnecessary losses and enhance overall performance.

2. Optimize Switching Devices
The choice of MOSFET or GaN devices affects conduction losses, switching losses, gate drive requirements, and thermal characteristics.

3. Optimize Transformer Design
Transformer efficiency depends on core material, winding structure, switching frequency, copper loss, iron loss (core loss), and leakage inductance.

4. Reduce PCB Losses
High-current paths need appropriate copper width and layout.
Poor routing can increase resistance and parasitic effects.

5. Optimize Rectification
The secondary-side rectification method can significantly influence efficiency, particularly at higher output currents.

6. Improve Thermal Design
Lower component temperatures can help maintain stable electrical performance and improve long-term reliability.

7. Optimize Control Firmware
For some modern charger architectures, control algorithms and operating modes can influence efficiency across different loads.

8. Reduce Standby Consumption
Low-power modes can reduce energy consumption when no device is connected.

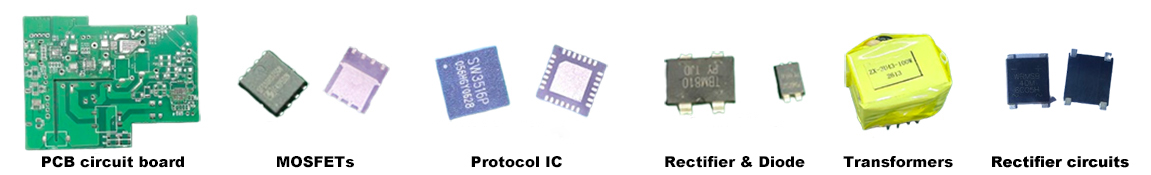

Important internal components of a mobile charger

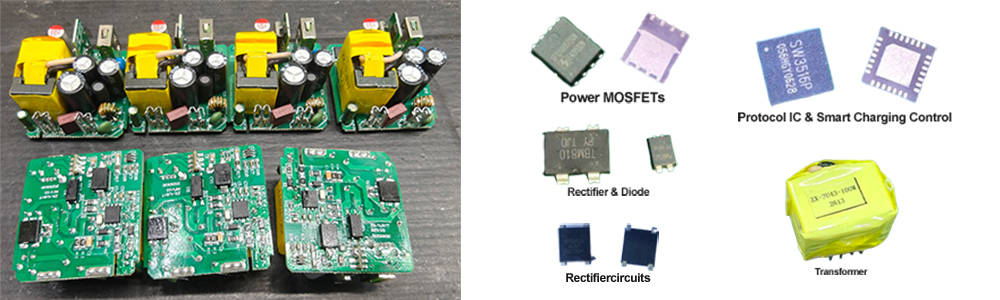

Why Component Selection Matters
A charger factory cannot evaluate efficiency by looking only at the main switching transistor.
Many components contribute to the final result.
Important examples include: Transformer / MOSFET / GaN transistor / Controller IC / Rectification components / Inductors / Capacitors / Resistors / PCB copper / Connectors.
A small change in one component can sometimes influence the entire power stage.
This is why replacing a specified component with a cheaper "equivalent" part can change efficiency, temperature or stability.
For mass production, component consistency is just as important as component selection.

Efficiency and Charger Reliability Are Connected
Efficiency does not directly determine reliability, but the two are strongly related through thermal stress.
Higher losses generally mean more heat.
Excessive heat generation increases the stress on components such as electrolytic capacitors, MOSFETs, transformers, inductors, PCB materials, solder joints, and connectors.
Therefore, a superior charger design balances electrical losses with temperature control.
For B2B customers and chargers requiring prolonged high-power operation, the manufacturer's thermal validation process is often just as important as the efficiency data.

How Should a Factory Test a 65W Charger?
A 65W USB-C charger might be evaluated across several operating conditions.
For example:
No Load — Check standby behavior and power consumption.
Light Load — Check low-power efficiency and operating-mode transitions.
Medium Load — Evaluate normal conversion efficiency.
High Load — Check efficiency and thermal performance.
Full Load — Verify rated output capability and stability.
Subsequently, the factory can compare parameters such as input power, output power efficiency, temperature, ripple, and stability.
This gives a much clearer picture than a single "65W / 92%" specification.

How Should a Factory Test a 100W or 140W Charger?
Higher-power chargers require greater attention to thermal and electrical margins.
Testing may include:
• Multiple AC input voltages, Multiple PD output voltages;
• Multiple load levels, Full-load operation, Extended-duration testing;
• Dynamic load testing, Thermal measurement, Protection testing.
For multi-port products, engineers should also test different combinations of connected devices.

For example:
USB-C1 only or USB-C2 only
USB-C1 + USB-C2 or USB-C1 + USB-A
When multiple ports operate simultaneously, the charger may redistribute power; this alters operating conditions, thereby affecting conversion efficiency.
For more information: Why Does My 100W Charger Drop to 65W When I Plug In Another Device?

Efficiency Is Not the Same as Charging Speed
This is another common misunderstanding.
A charger can have excellent efficiency but still charge a particular phone relatively slowly.
Why?
Because charging speed depends on the negotiated power and the device's charging system.

For example:
Charger efficiency = How efficiently the charger converts energy
Charging speed = How much power the device actually accepts
These are different questions.
A 100W charger does not force an output of 100W to all devices; the device itself determines how much power it can accept based on charging protocols and its operating status.
For troubleshooting slow charging: Why Is My Fast Charger Charging Slowly? 10 Reasons and What to Check

What Should B2B Buyers Ask a Charger Factory About Efficiency?
If you are buying chargers for a brand, retailer, distributor or e-commerce business, do not ask only: "What is the efficiency?"
Ask for the conditions behind the number.
Useful questions include:
• At what AC input voltage was efficiency measured?
• At what output voltage?
• At what load?
• What is the no-load power consumption?
• Is efficiency tested at full load?
• Is thermal testing performed together with efficiency testing?
• Are different PD output profiles tested?
• Is the result from a production unit or only an engineering sample?
• How is production consistency controlled?
These questions help determine whether the number is meaningful.

Why a Factory Efficiency Test Report Needs Test Conditions
Consider two suppliers.
Supplier A says: Efficiency: 94%
Supplier B says: Efficiency: 92%
At first glance, Supplier A appears better. But what if:
Supplier A tested at 230V AC / 20V / 65W.
Supplier B tested at 100V AC / 9V / 30W.
The numbers are no longer directly comparable.
A standard engineering report should clearly list the following information: input voltage, frequency, output voltage, output current, output power, temperature, measurement equipment, and test duration.
For rigorous B2B procurement, the test conditions themselves are an integral part of the product specifications.

Efficiency, Heat and Charger Size Form One Engineering Triangle
One of the easiest ways to understand modern charger development is to look at three connected factors: Efficiency, Thermal performance and Size.
Higher efficiency generally means fewer conversion losses.
Fewer losses generally mean less heat.

Less heat can make it easier to design a compact product. But the relationship is not unlimited.
As charger power increases, thermal density also rises.
This is why high-power GaN chargers require careful optimization of:
• Power semiconductors, Magnetics, PCB;
• Thermal paths, Enclosure, Switching frequency.
The smallest charger is not automatically the best charger.
The better design is the one that achieves an appropriate balance between power density, efficiency, temperature, reliability and cost.

What Makes a High-Efficiency Charger?
From a factory engineering perspective, high efficiency is usually the result of many small decisions working together.
Excellent charger design often combines multiple factors (high-efficiency switching devices, optimized circuit topology, low-loss transformers, appropriate switching frequency, excellent PCB layout, high-efficiency rectification scheme, controlled output filtering, proper thermal design, low-power standby mode, stable control algorithm, and consistent components, etc.).

Overall performance stems from the entire system; rarely does a single "secret component" play a decisive role.
That is one of the biggest differences between simply sourcing a charger and developing one with an experienced manufacturer.

Final Thoughts: Efficiency Is a Design Target, Not Just a Percentage
When buyers compare chargers, efficiency is easy to reduce to one number.
But professional charger engineering is more complicated.
A charger should be evaluated across its actual operating range.
Engineers need to consider: Efficiency + Standby Power + Temperature + Ripple + Stability + Safety + Reliability

For a 20W charger, a few watts of loss may be relatively easy to manage.
For a compact 100W, 140W or higher-power charger, those same losses can become a significant thermal challenge.
This is why charger manufacturers invest so much effort into power topology, GaN technology, transformer design, PCB layout, component selection and thermal engineering.

A high-efficiency charger is not simply a charger that reports a high percentage on a test sheet.
It is a charger that can convert power efficiently, maintain stable output, control heat and deliver consistent performance throughout its intended operating range and production life.
That is the real meaning of efficiency in charger manufacturing.

FAQ: Charger Efficiency
Q1. What is charger efficiency?
Charger efficiency is the percentage of electrical input power that is converted into useful output power. It is calculated by dividing output power by input power and multiplying by 100%.

Q2. Does a 100W charger always consume 100W?
No. A 100W rating normally refers to the charger's output capability. Actual wall power consumption depends on the connected device, output power, efficiency and operating condition.

Q3. Why does a charger get hot?
Some input power is lost during AC-to-DC conversion and becomes heat. Lower efficiency generally means more power loss and therefore more heat that the charger needs to dissipate.

Q4. Are GaN chargers more efficient?
GaN technology can help engineers achieve high switching efficiency and power density, but GaN alone does not guarantee a highly efficient charger. The complete circuit design determines the final performance.

Q5. Is charger efficiency the same at every load?
No. Efficiency can change significantly between no load, light load, medium load and full load. This is why professional factory testing uses multiple load conditions.

Q6. What is no-load power consumption?
No-load power consumption is the electricity consumed by a charger when it is connected to the AC source but is not delivering meaningful output power to an external device.

Q7. Why is efficiency important for a 100W charger?
Higher efficiency reduces conversion losses and heat. This is particularly important for compact 100W chargers because several watts of additional heat can significantly affect thermal design and reliability.

Q8. Does higher wattage mean a charger uses more electricity?
Not automatically. Wattage describes the charger's available output capability. Actual energy consumption depends on how much power the connected device requests and how efficiently the charger converts it.

Q9. How do charger manufacturers measure efficiency?
Factories normally measure AC input power and DC output power using appropriate power-analysis equipment and controlled electronic loads. Tests can be repeated at different input voltages, output profiles and load levels.

Q10. What factors affect charger efficiency?
Important factors include power topology, switching devices, transformer design, rectification, PCB resistance, switching frequency, control strategy, component quality and thermal conditions.

Q11. Does better efficiency make a charger smaller?
It can help. Lower losses mean less heat, which can reduce thermal-management requirements and give engineers more freedom to develop compact designs. However, charger size also depends on topology, components and power density.

Q12. What should I ask a charger factory about efficiency?
Ask for the efficiency result together with the input voltage, output voltage, output power, load condition and test temperature. For serious B2B projects, also ask about no-load consumption, full-load testing, thermal validation and production consistency.

Reviewer: ZX-power R&D Team — Selike and Miller
Technical Review: Charging Products and Power Solutions
Final Review Date: [September 11, 2026]

Previous : Charger Ripple and No-Load Ripple A Manufacturer’s Testing Guide

Next : Why Does My USB-C Charger Keep Disconnecting? Causes, Testing and Factory Solutions
