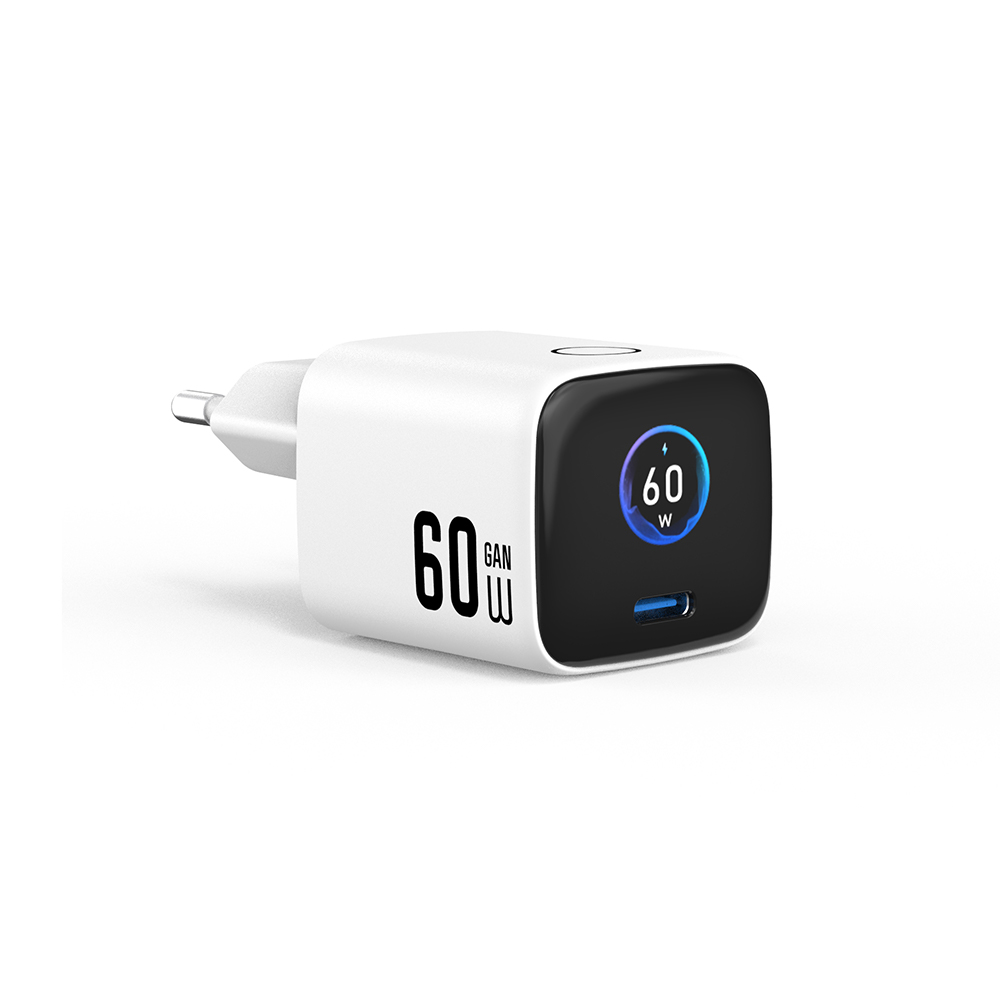

TFT Display 60W SPR AVS/DPS PD3.2 GaN Charger The ZX-1U106T is a compact 60W GaN charger developed around the latest USB-C charging requirements, combining PD3.2, AVS/DPS, PPS and a TFT intelligent display in a small single-port design. For brands developing next-generation smartphone chargers, this model is particularly suited to iPhone 18 Pro Max charging applications, while also supporting Samsung Galaxy, tablets, MacBook, laptops and other USB-C devices.
What makes this model different is not simply the 60W rating. It combines a high-power USB-C output with dynamic charging technology and a real-time display, giving users visible charging information instead of treating the charger as a simple power brick.
Apple's current accessory listings for iPhone 18 Pro Max include a 40W Dynamic Power Adapter with 60W Max, which makes the 60W dynamic-charging segment especially relevant for the new iPhone generation.
A 60W Charger Designed Around the New Dynamic Charging Era The ZX-1U106T provides up to 60W Max through USB-C:5V/3A, 9V/3A, 15V/3A, 20V/3A It also supports: PPS: 5–11V/5A, 55W Max; 5–21V/3A, 60W Max AVS: 9–15V/2.67A, 15–20V/2A Dynamic current capability specified for the AVS/DPS architecture This makes the ZX-1U106T a suitable platform for a 60W PD3.2 charger, especially where the customer wants to combine conventional PD charging with newer dynamic-voltage charging technologies. Zonsan has also published technical material explaining the development from PPS toward AVS within the USB PD ecosystem, which can be used as a supporting internal resource for customers researching the technology.For a deeper explanation of PD3.2 and AVS charging, see our guide to [PD3.2 AVS charging technology].

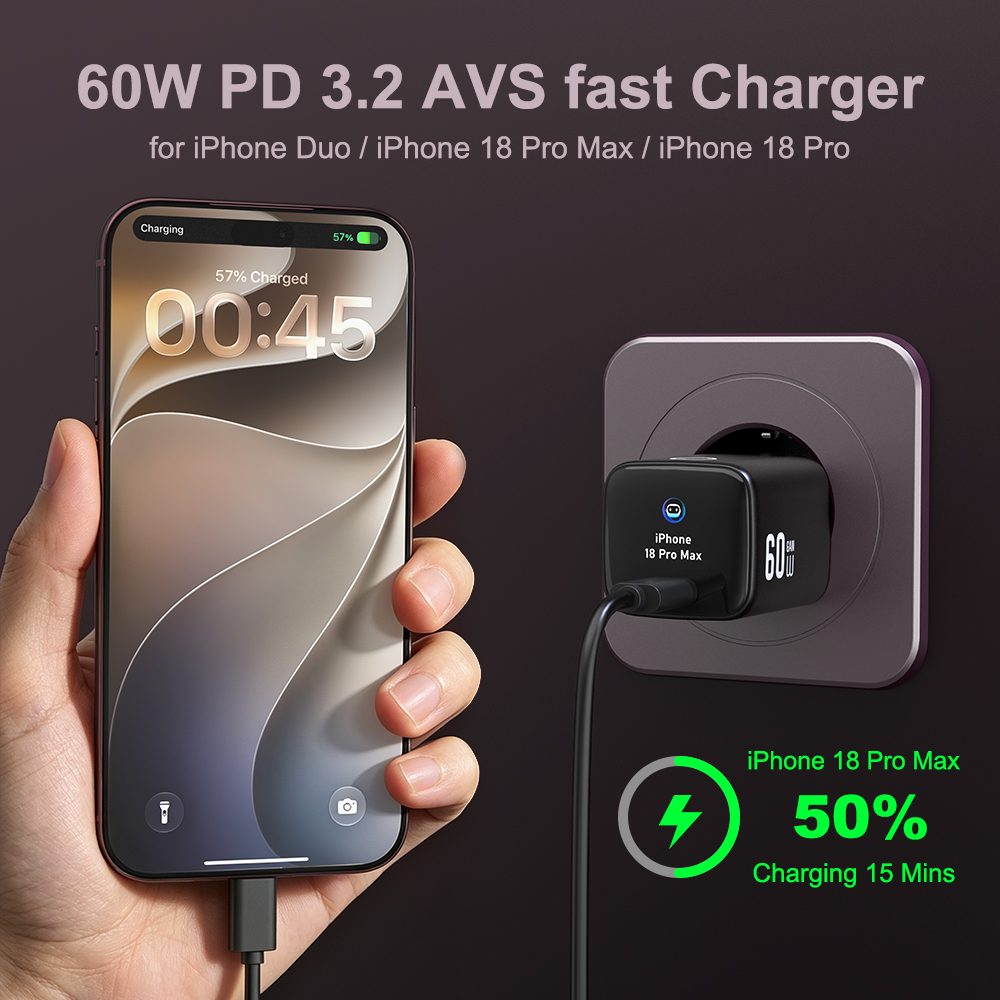

AVS DPS 60W Charging for iPhone 18 Pro Max The most important application of the ZX-1U106T is its positioning as an AVS DPS 60W charging solution for the latest iPhone generation. The charger is designed for iPhone 18, iPhone 18 Pro and iPhone 18 Pro Max charging applications, with the USB-C output supporting the required dynamic power profiles. Apple currently lists the iPhone 18 Pro Max together with its 40W Dynamic Power Adapter with 60W Max, confirming that dynamic 60W-class charging is part of the current iPhone accessory ecosystem.
For the ZX-1U106T, Zonsan's specified charging behavior for iPhone 18 Pro Max can reach approximately 55W during the high-power charging stage. After around 10 minutes of high-power operation, charging power may dynamically reduce to approximately 40–45W, depending on the phone's battery state and thermal conditions. That reduction is normal for modern fast charging. Maximum charger output and the power actually requested by the smartphone are not the same thing.For brands comparing the two charging technologies, our guide to [PPS vs AVS] explains how their voltage adjustment methods differ.
Why this matters for an iPhone 18 Pro Max charger A 60W charger does not mean the phone continuously consumes 60W. The actual charging curve changes according to factors such as: • Battery state of charge • Battery temperature • Device temperature • Charging protocol negotiation • Cable capability • Apple's charging control strategy This is why a 60W AVS/DPS charger can provide a high initial charging level and then operate at a lower power level as charging progresses.

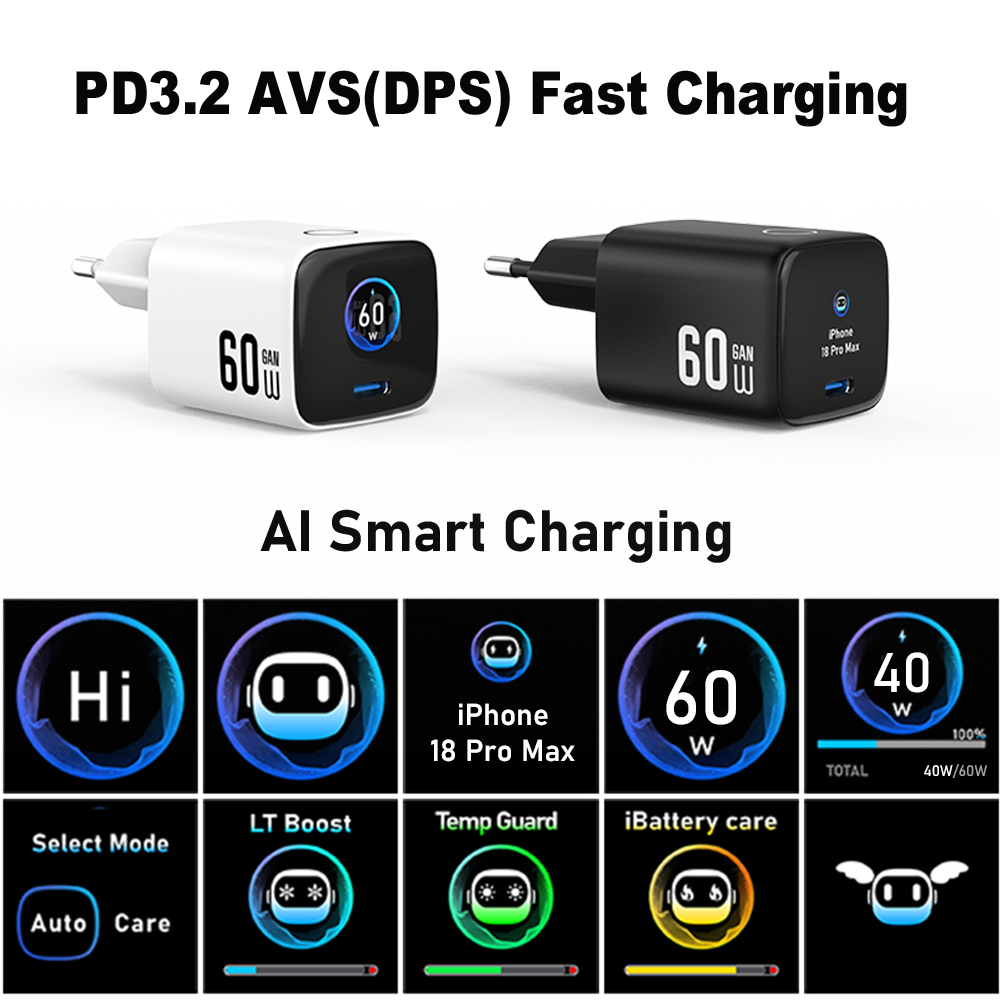

TFT Display Shows What the Charger Is Doing The integrated TFT intelligent display gives the ZX-1U106T a more informative user experience than a conventional wall charger. The screen can display charging information and identify the connected phone model, allowing the user to see what is happening during charging rather than relying only on the device's battery icon. This creates a distinct display charger product category for brands looking for something more visible and interactive. The display concept also fits Zonsan's broader TFT Display GaN charger development. Zonsan currently presents TFT display chargers in its 45W, 65W and 100W product range, with display functions designed around real-time charging information. Display functions can include • Charging status • Connected phone model • Charging information • Charging mode • Power-management status For OEM projects, the display interface can be discussed according to the customer's product requirements.

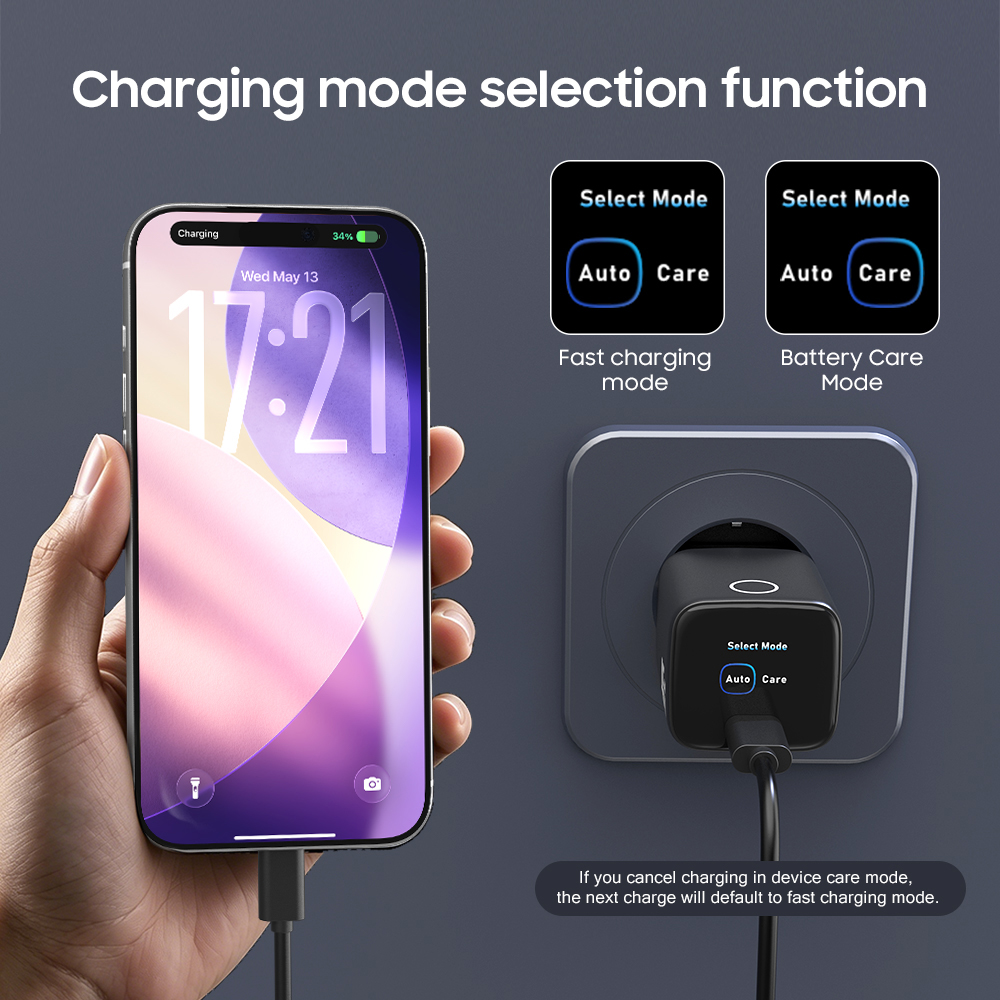

Two Charging Modes: Efficiency or Lower-Power Operation The ZX-1U106T incorporates a dual charging-mode concept, allowing the product to switch between a higher-efficiency charging mode and a lower-power mode. This is particularly useful for a charger with a display because the user can see more clearly how the charger is operating. Instead of simply advertising “60W fast charging,” the product communicates a more complete charging experience:High-power charging→ dynamic power adjustment→ lower charging power as required→ visible charging status. This is also useful for B2B brands looking to develop a smart display charger rather than another conventional USB-C wall adapter.

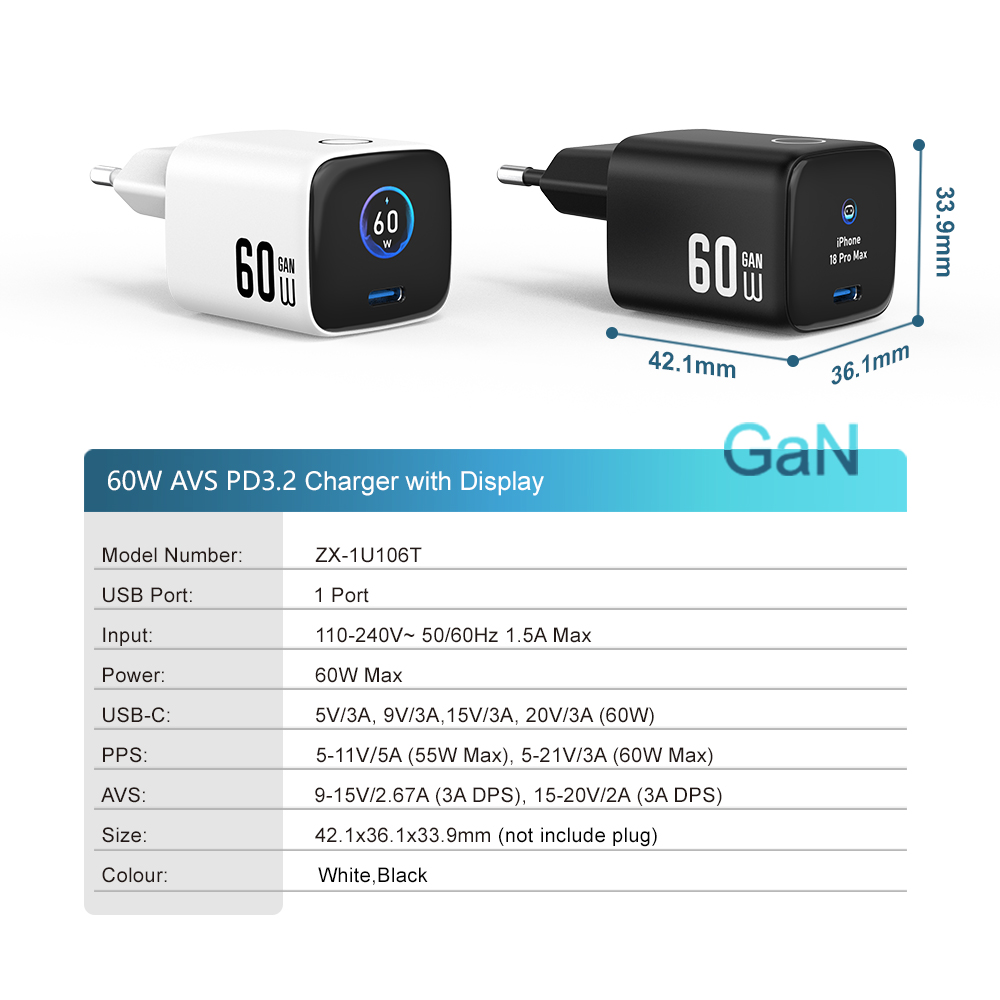

Mini 60W GaN Charger — 42.1 × 36.1 × 33.9 mm Despite the 60W output rating and integrated TFT display, the ZX-1U106T measures only:42.1 × 36.1 × 33.9 mm The compact enclosure makes it suitable for: • Travel chargers • Smartphone fast chargers • Business chargers • Retail electronics accessories • E-commerce charger products • Premium private-label chargers • iPhone charging accessories • Samsung fast-charging accessories The GaN architecture allows Zonsan to build a high-power charger in a much smaller form factor than many conventional silicon-based designs. For brands, this gives the product two obvious selling points at the same time: 60W charging capability and genuinely compact size.
GaN + PC V0 + Compact Power Architecture The ZX-1U106T uses a GaN power solution and PC V0-grade fire-resistant material. The internal design is optimized around several requirements that have to work together:High power density + thermal control + electrical safety + compact enclosure + display electronics. The charger is therefore not simply a high-wattage adapter with a screen attached. The display, power stage, USB-C output and enclosure all need to work within the same compact mechanical structure. For a 60W display charger manufacturer, this type of integration is an important part of product engineering.
One USB-C Port, Broad Device Coverage The single USB-C output is designed for a wide range of modern USB-C devices. iPhone charging Suitable for charging applications covering:iPhone 14→ iPhone 15→ iPhone 16→ iPhone 17→ iPhone 18 series; including iPhone 18 Pro Max charging applications.
Samsung fast charging The PPS capability supports fast-charging applications for:Samsung Galaxy S22 / S23 / S24 / S25 / S26 series. Actual charging speed depends on the device's supported charging protocol and charging conditions.
Other USB-C devices The charger is also suitable for: • iPad and other tablets • MacBook • Compatible laptops • USB-C mobile devices • Digital products • Other PD-compatible equipment This gives distributors the opportunity to market one charger across several device ecosystems instead of developing a separate charger for each smartphone brand.
ERP Level VII Energy Efficiency The ZX-1U106T is specified for ERP Level VII energy efficiency, supporting the product's positioning for the European charger market. For B2B buyers, energy-efficiency requirements are becoming an important part of charger product development, particularly for products intended for European distribution. The charger can therefore be developed around both sides of the requirement:Fast charging performance during use + energy efficiency when the charger is not actively delivering high power. Certification and regulatory requirements should always be matched to the exact production configuration and target market.
Quality Is Built Around Testing, Not Just Certification For a charger manufacturer, obtaining a certificate is only one part of the quality process. Zonsan's charger manufacturing process includes production testing and 100% aging testing for 2 hours before shipment. The factory also has testing and engineering capabilities for product verification and quality control. Zonsan's current factory information describes PCBA testing, AOI inspection, HI-POT testing, automatic aging and functional testing, together with an EMC laboratory.
For a display charger such as ZX-1U106T, engineering verification can cover areas including: • USB-C output performance, PD negotiation, PPS performance, AVS/DPS operation; • Display functionality, Charging-mode switching, Temperature behavior; • Full-load aging, Electrical safety, EMC/EMI testing, Component reliability. This engineering approach is particularly important for a compact 60W GaN charger, where power density and thermal behavior have to be considered together.

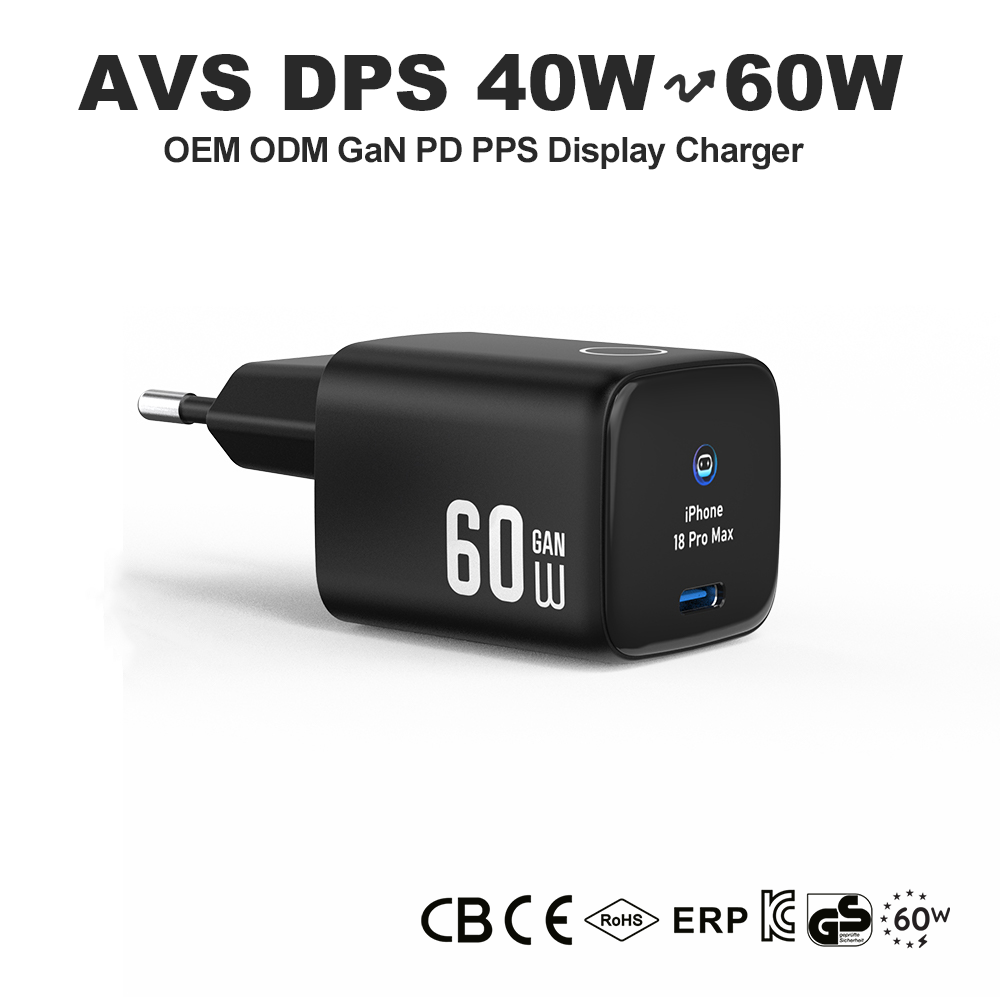

Certifications for International Markets The ZX-1U106T can be supplied with the following certifications according to the specified configuration:CE, CB, RoHS, KC, KCC, FCC, EPR, EAC, GSand ANATEL, etc. Zonsan can also coordinate certification requirements for different destination markets and customer programs. For B2B customers, certification documentation can be aligned with the actual product version, plug configuration and sales region rather than treating certification as a generic product label.
OEM & ODM Display Charger Development Zonsan provides OEM and ODM manufacturing for brands that want more than a standard charger with a logo. For the ZX-1U106T, customization can include: • Charger color, Product logo, Retail packaging, Plug type, Cable; • Display interface requirements, Product appearance, Customized market configuration. This makes the ZX-1U106T suitable as a foundation for a private-label display charger, smartphone accessory program or next-generation USB-C fast charger.You can also learn more about Zonsan as a [GaN PD charger manufacturer] and its production capabilities for OEM and ODM projects. Zonsan's current manufacturing profile covers OEM/ODM, private-label production, product engineering and international compliance for global B2B customers.
Why Source This 60W Display Charger From Zonsan? The ZX-1U106T brings several product technologies into one compact platform: 60W USB-C PD + PPS + AVS/DPS + PD3.2 + TFT display + GaN + ERP Level VII + OEM/ODM. For a brand or distributor, that combination creates several possible market positions: • iPhone 18 Pro Max charger • 60W GaN charger • PD3.2 AVS charger • AVS DPS charger • Display charger • Smart USB-C charger • Premium travel charger • Samsung PPS charger Zonsan can support the project from product specification and engineering through certification, OEM/ODM customization and mass production.
